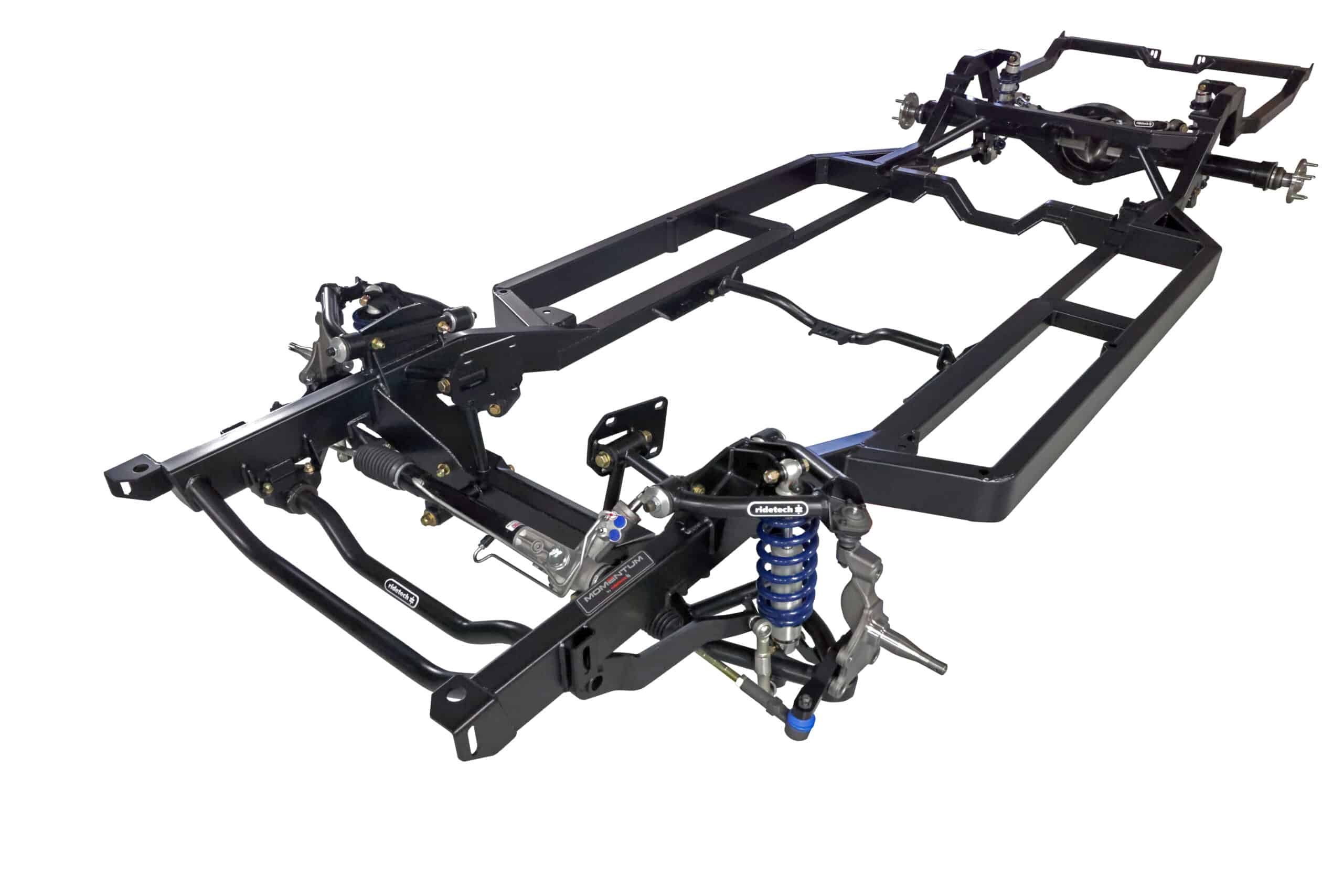

Ridetech MOMENTUM Chassis | 1964-1967 Chevelle

For 1964–1967 GM Chevelle, 2 Door, 4 Door and Convertible.  DESCRIPTION: Free From Factory Limitations! For nearly 30 years, Ridetech has pushed the boundaries of suspension performance — but always within the constraints of factory chassis geometry. Ridetech’s MOMENTUM Chassis Series changes all that. This is Ridetech’s first-ever complete performance chassis: designed, engineered, and manufactured in the USA from the ground up for the GM Chevelle platform. It delivers superior handling, increased wheel and tire clearance, and unmatched compatibility — all with the adjustability and strength builders demand. Wheel/Tire Clearance: Fitting larger wheels and tires on muscle cars has been popular for decades now. The MOMENTUM series chassis is designed to allow larger wheel and tire fitment beyond factory chassis limitations, reducing the potential for tire and frame contact on the inside on wider setups and negatively impacting turning radius. Ridetech engineers found their best combination with an 18″×9” (6″ bs) or 18″x10″ (6.5″ bs) which allowed for installation of a 275/40/18 Falken RT660 tire with no lock-to-lock steering issues on factory inner fender liners.  Suspension Geometry: While suspension geometry improvements can be had with changes to ball joint locations and control arm design, the original design still limits any changes outside of the factory pickup points. From the ground up the MOMENTUM chassis design allowed us to control exactly where we wanted those pickup points to be from both enthusiast and modern tech perspectives. This development yielded more desirable camber gain, caster, roll center, and Ackermann, translating to improved performance and ride quality. Robust tubular upper and lower control arms attach to high-quality ball joints before affixing to either Ridetech’s Tall AFX hub or pin spindles. We also integrated our modular suspension design approach that accommodates both Ridetech coil-overs or Shockwave® air suspension. Coil-overs or Air: Whether you select a static (coil-over) or dynamic (air suspension) drop, Fox Factory monotube shocks can be had in single, rebound adjustable (HQ) or triple adjustable (TQ) iterations, keeping your front tires glued to the ground whether you’re on the street or the track. Impact forged aluminum shock bodies provide superior strength while their monotube design offers superior fade free performance. The larger 1.834’’ piston provides outstanding ride quality and 24-positions of rebound adjustability allow fine-tuning the responsiveness of each corner of your ride. Steering Improvements: Let’s face it. No one really wants their recent muscle car purchase to handle just like it did back when it was new. Modern rack and pinion steering is vastly superior to vintage recirculating ball-style steering systems, which is why manufacturers have long-since adopted rack-and-pinion steering. Likewise, the MOMENTUM chassis design incorporates the commonly available 99-04 Ford Mustang steering rack. Traditional steering that is old or worn-out factory-style steering components often feels disconnected or wanders under normal operation, whereas rack-and-pinion steering produces a much more direct and positive steering feel and response, leading to improved confidence behind the wheel. We carry the quick ratio PSC steering rack 99-04 variant, however standard versions can be ordered through auto parts retailers or other performance brands. We used PSC Rack Part # 11009556. Drivetrain Options: We recognize that pulling the trigger on a chassis is a decision not taken lightly. With that in mind, the MOMENTUM chassis series accommodates a host of popular engine and transmission combinations that will satisfy a wide range of builders and customers thanks to an array of engine mount plates and an adjustable universal transmission crossmember. Engines: Whether you’re looking to install the latest in direct-injection GM LT powerplants, fancy the simplicity and power of the LS family of engines, or want to kick it old-school with a conventional small or big block Chevy, our engine mount plates have you covered. Transmissions: Our adjustable transmission crossmember will allow the shifting your own gears or let the balls and valves or a computer sort out when to shift. Popular manual transmission like the Tremec T-56/TKX, or classic Muncie and Saginaws are compatible as are popular automatics like the TH350/400/700R4, or 4L60/80E family. Not an exhaustive list* Rear Axle Housings: Ridetech’s own Ford 9” rear axle housings are a staple of the MOMENTUM chassis and ensure that you’re able to put the power down, no matter how you’re using your classic Chevelle. Both standard and narrowed axle widths are available. We also carry popular third members to complete your drivetrain.   Brakes: Whether you’re running a stock ‘pin style’ or later model ‘hub’ style variant spindle, Ridetech has you covered. Ridetech conveniently offers Wilwood and some Baer brakes solutions as a complement to applications we support, so you can successfully shop for your suspension and brake solutions in one place. Aftermarket pin spindle brakes are a great way to improve braking performance, but if you’re all about the latest in available braking technology our AFX hub spindles accommodate C5/C6/C7 Corvette hubs, which allow the installation of factory or aftermarket C5/C6 brake packages. FEATURES & BENEFITS: �� Key Benefits True Performance Geometry Reengineered suspension pickup points improve camber gain, caster, roll center, and Ackermann. Ride Height Adjustable  Like existing Ridetech Chevelle systems this chassis lowers vehicle ride height roughly 2’’ from stock. Can be adjusted to suit desired height. Improved Tire Clearance FRONT: Up to 275/40R18 on 18×9″ (6″ BS) or 18″x10″ (6.5″BS) | Larger fitments possible when using steering rack limiters & modified inner fenders. REAR: 295/40R18 on 18×11″ (6.5″ BS) | Mini-tubs can allow up to 335mm rear tires. Modular Suspension Compatibility Choose Ridetech/Fox Factory Coil-overs or Shockwave® Air Suspension. Both bolt directly in. Steering Modernization  Rack-&-pinion steering improves steering feel and feedback. Uses common 1999–2004 Mustang rack (PSC #11009556 recommended). (Sold separately. Available HERE) Robust Driveline Foundation Fabricated Ford 9” Rear Axle Housing available in both standard and narrow widths to accommodate multiple build styles. Third members with popular rear end ratios are also available.  Engine & Transmission Flexibility Accommodates small/big block Chevy, LS, & Gen V LT engines. Adjustable transmission crossmember accepts popular manuals & automatics (T56/TKX) and automatics (TH350, 700R4, 4L80E). This is NOT an exhaustive list. Braking Options Choose from: Pin spindles (stock-style & aftermarket Wilwood/Baer kits) Hub spindles (C5/C6/C7 brakes with factory or aftermarket calipers) �� Chassis Features Tubular upper & lower front control arms with Delrin bushings | Polyurethane body bushings Rear upper and lower control arms feature Ridetech’s patented R-joints, providing noise free, exceptional articulation with no maintenance (self-lubricating Delrin) High-quality ball joints, billet sway bar mounts  Compatible with stock style fuel tank.  Aftermarket tanks with notched front corners allow the tail pipes to routed higher. Frame channels for clean fuel & brake line routing Optional 3-joint steering bearing mount for better header clearance (ideal for big block engines, sold separately) Improved header clearance & exhaust routing allow for a variety exhaust solutions Durable powder coat finish No cutting or floor pan modifications required Designed for use with factory parking brake cable Large 1.5” front sway bar improves weight transfer and reduces body roll. Features billet aluminum mounts, low friction bushings, and ball joint style linkage. Bar rate = 1,000lb/in rate Also available: Optional adjustable rear sway bar. (350/475/650 lb/in rates). Includes billet aluminum mounts, low friction bushings, & ball joint style linkage.   �� Vehicle Compatibility Fits: 1964–1967 Chevelle 2 Door, 4 Door and Convertible Does NOT fit: Wagons and El Camino Buick, Oldsmobile or Pontiac cars �� Shipping Information | This product must be picked up in Jasper, IN, or shipped via truck freight. A flat crating fee of $595 will be applied to each order that is shipping via freight (local pickup option can waive crating fee if desire to pickup without crate). A Ridetech representative will be in touch for domestic or international orders. Additional freight charges will apply.  To schedule local pickup: email [email protected] and we’ll contact you within 48 hours. Indiana sales tax may apply. 11233799, 11233798, 11233797, 11233796
