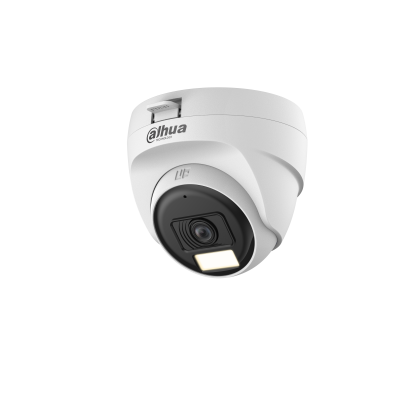

Dahua HAC-T1A21-U-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Audio Camera

Camera Image Sensor 2 MP CMOS Max. Resolution 1920 (H) × 1080 (V) Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s–1/100,000 s;NTSC: 1/30 s–1/100,000 s Min. Illumination 0.02 [email protected] (Color, 30 IRE);0.002 [email protected] (B/W, 30 IRE);0 lux (Illuminator on) S/N Ratio >65 dB Illumination Distance IR: 25 m (82.02 ft);Warm light: 20 m (65.62 ft) Illuminator On/Off Control Auto;Manual Illuminator Number 2 (Warm light);2 (IR light) Angle Adjustment Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm;3.6 mm Max. Aperture F2.0 Field of View 2.8 mm: H: 100°; V: 54°; D: 117°3.6 mm: H: 80°; V: 43°; D: 94° Iris Control Fixed Close Focus Distance 2.8 mm: 0.5 m (1.64 ft)3.6 mm: 0.8 m (2.62 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 44.7 m(146.65 ft) 17.9 m(58.73 ft) 8.9 m(29.20 ft) 4.5 m(14.76 ft) 3.6 mm 55.0 m(180.45 ft) 22.0 m(72.18 ft) 11.0 m(36.09 ft) 5.5 m(18.04 ft) Video Video Frame Rate CVI:PAL: 1080p@25 fpsNTSC: 1080p@30 fpsAHD:PAL: 1080p@25 fpsNTSC: 1080p@30 fpsTVI:PAL: 1080p@25 fpsNTSC: 1080p@30 fpsCVBS:PAL: 960HNTSC: 960H Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480) Day/Night Auto(ICR)/Color/B/W BLC BLC; HLC; DWDR WDR DWDR White Balance Auto;Area white balance Gain Control Auto;Manual Noise Reduction 2D NR Illumination Mode Smart IR&WL; WL Mode; IR Mode Mirror Yes Privacy Masking Off/On (8 areas, rectangle) Certification Certifications CE-LVD: EN 62368-1;CE-EMC: EN 55032; EN 55035 Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in Mic Power Power Supply 12 VDC ± 30% Power Consumption Max 2.1 W (12 VDC, LED on) Environment Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F) Operating Humidity <95% (RH), non-condensing Storage Temperature –40 °C to 60 °C (–40 °F to 140 °F) Storage Humidity <95% (RH), non-condensing Anti-corrosion Level Basic Protection Structure Casing Material Plastic Product Dimensions Φ85.0 mm × 77.1 mm (Φ3.35″ × 3.04″) Net Weight 0.11 kg (0.24 lb) Gross Weight 0.12 kg (0.26 lb) Installation Wall mount; ceiling mount
