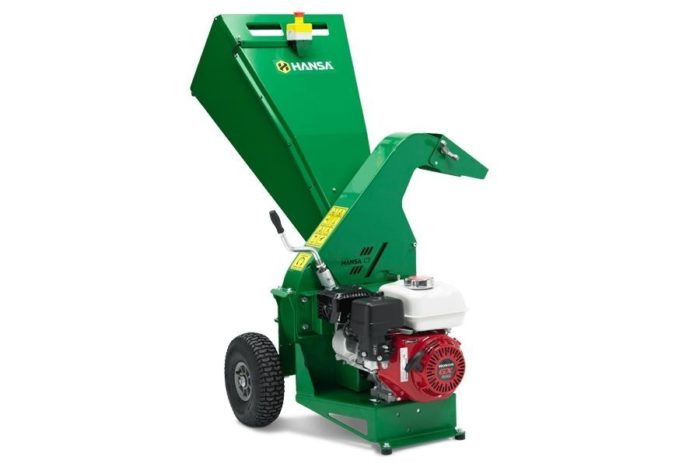

Starting the C7 is easy thanks to the soft start engagement system. The 6.5 horsepower of the quality Honda GX200 196cc four-stroke engine is transmitted to the cutting disk through a twin belt drive, which provides smooth running and protects the engine against shock loads. Operating with two cutting knives, the heavy duty C7 has the appetite to chip branch material (green or dry) up to 70mm in diameter. With the Hansa C7 no pre-cutting is necessary and the branches are drawn into the input chute. The cutting blades shear the material against an adjustable hardened counterknife, or anvil. This action will be just as efficient in 10 years’ time as on the first day of use, so long as the knives are kept sharp. The extremely efficient self-feeding action can be attributed to the design of the rotor and the blade set up. The inertia generated by the large rotor disk creates enough momentum to continue cutting, as well as providing plenty of draught to discharge the mulch up to 4 metres away. The distance can be moved closer to the operating area, if desired, by adjusting the deflector on the chute. Having a discharge height of 0.7 metres makes the C7 model ideal for discharging onto a trailer or wheelbarrow, thus eliminating the need for any double handling of the material. The simple design of the C7 allows full access to the inside of the machine by pivoting open the outlet chute, so that changing the blades for sharpening is simple and requires little effort. The blades can last anywhere up to 30 hours before requiring sharpening, depending on the type of material being handled. The cantilver rotor design allows stringy materials to be processed without running the risk of wrapping around the shaft. Built to last, the housing, inlet and outlet chutes of Hansa chippers and shredders are made of solid steel, with no plastic components. The C7 is fitted with large pneuamtic wheels and integral handles for easy transportation, and rugged feet to keep the machine static during operation. Brand Hansa Engine Honda Engine Model GX200 Engine Type Petrol, 4-stroke Displacement 196cc Horsepower 6.5hp Start Method Recoil Belt 2 x V belt (part no HCPI-P035) Fuel Tank Capacity 3.1L Oil Tank Capacity 0.6L Chipper Hopper Opening 130 x 150mm Chipping Knives 2 x A8 modified tool steel, 110 x 42 x 9mm (part no. HCCP-P068 Feed Mechanism Gravity fed, self-feeding Maximum Branch Diameter 70mm Chipping Speed 2850rpm Flywheel 400 x 10mm Discharge Chute Fixed with deflector Output Deflector H: 825mm Wheel Size 270mm Tyres Pneumatic Housing Material 5mm steel plate Front Bumper Optional Tow Hitch Optional Assembled Dimensions L: 90cm x W: 65cm x H: 120cm Weight 95.0kg Sound and Noise Data Guaranteed sound power level LWA: 109dB(A) Warranty 2 years domestic based on product registration
